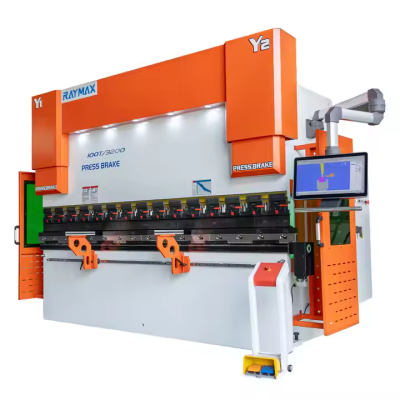

DELEM ESA 875 125T CNC Hydraulic Press Brake

We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. We can also custom design and manufacture a press brake to your exact needs.TypeNominal pressure (KN)Workbench length (mm)Workbench width (mm)Poles distance (mm)Throat depth (mm)Main motor (kw)Dimensions L*W*H (mm)40*1600400160090011653505.52250*1650*240063*2500630250090019603805.53150*1700*250080*2500800250090019603807.53150*1700

Certifications

Description
Inquiry

We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. We can also custom design and manufacture a press brake to your exact needs.

Type	Nominal pressure (KN)	Workbench length (mm)	Workbench width (mm)	Poles distance (mm)	Throat depth (mm)	Main motor (kw)	Dimensions LWH (mm)
40*1600	400	1600	900	1165	350	5.5	225016502400
63*2500	630	2500	900	1960	380	5.5	315017002500
80*2500	800	2500	900	1960	380	7.5	315017002500
80*3200	800	3200	900	2760	380	7.5	385017002500
100*3200	1000	3200	950	2750	390	7.5	390018002650
125*3200	1250	3200	950	2750	390	11	390018002680
160*3200	1600	3200	1000	2740	400	15	400019002720
200*3200	2000	3200	1000	2730	400	18.5	400019002720
300*3200	3000	3200	1330	2720	500	22	400022003500
100*4000	1000	4000	950	3350	390	7.5	480018002650
125*4000	1250	4000	950	3350	390	11	480018002680
160*4000	1600	4000	1000	3340	400	15	480019002720
200*4000	2000	4000	1000	3330	400	18.5	480019002800
250*4000	2500	4000	1000	3330	450	18.5	480019002850
300*4000	3000	4000	1330	4920	500	22	480019502900
200*6000	2000	6000	1000	4940	400	18.5	680019002800
250*6000	2500	6000	1050	4930	450	18.5	680019002850
300*6000	3000	6000	1330	4920	500	22	680019502900
400*6000	4000	6000	1350	4920	500	37	680020002950
500*6000	5000	6000	1350	4910	500	45	680020503000
